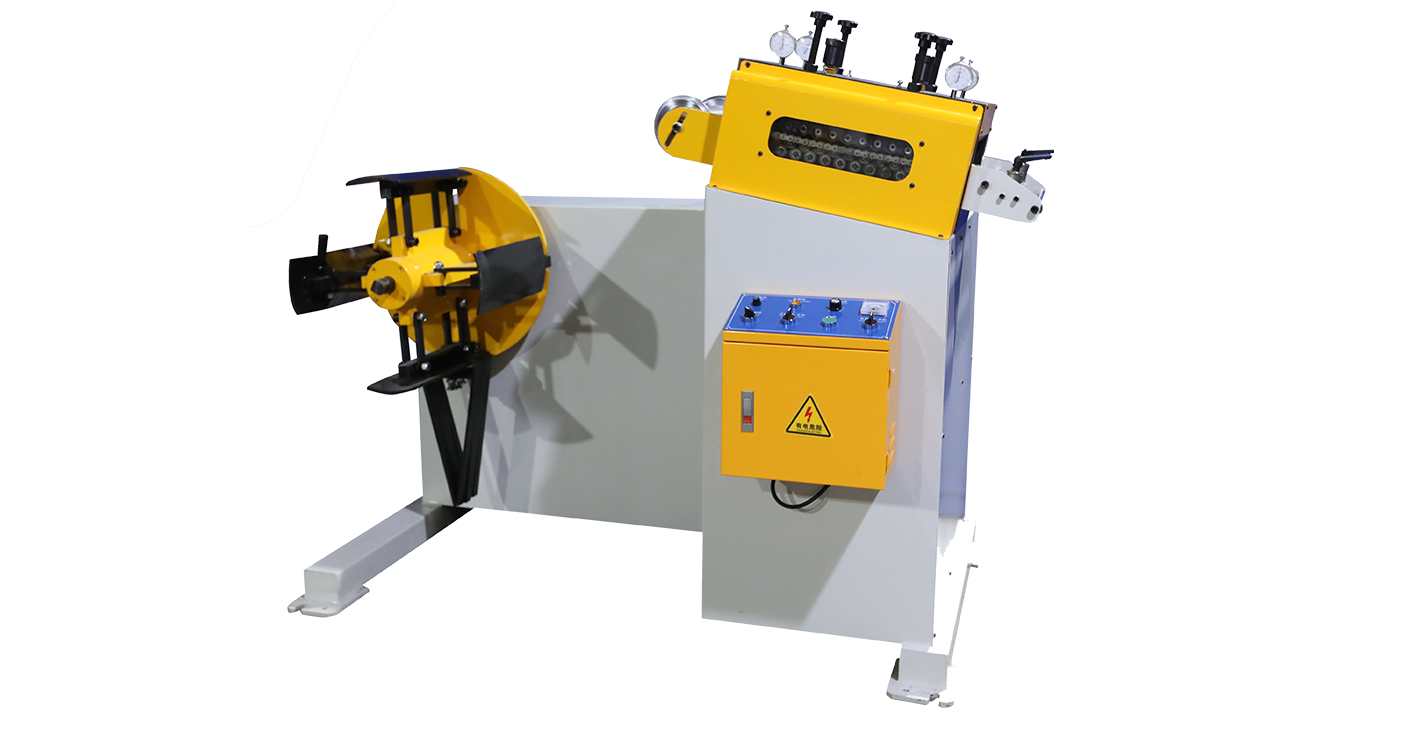

Model |
DSL20-200~400 | DSL30-200~500 |
| Material Width(mm) | ~200~400 | ~200~500 |
| Material Thickness(mm) | 0.1~0.6 | 0.2~1.2 |
| Max Coil Weight (kg) | 500~2000 | 500~2000 |
| Straightening Roller | 20 Up9/Dn10 | 32 Up7/Dn8 |
| Adjustment method | Four-point independent pressing | Four-point independent pressing |
| Motor | 400W+750W | 400W+750W/1.5kw |
| Coil I.D.(mm) | 450~530 | 450~530 |
| Coil O.D.(mm) | 1200 | 1200 |
| Feed Speed(m/min) | 12 | 15 |
| Material Expansion | Manual | Manual |
| Power Supply | 3Phase 380V 50Hz / As customer request | 3Phase 380V 50Hz / As customer request |
| Optional |
Turbine down pressure adjustment, manual grease pump, discharge arc wheel adjustment, leveling reinforcement wheel. |
|
Due to continuous research and improvement of the company’s products, the above specifications, pictures, parameters are subject to change without prior notice, support customization.
