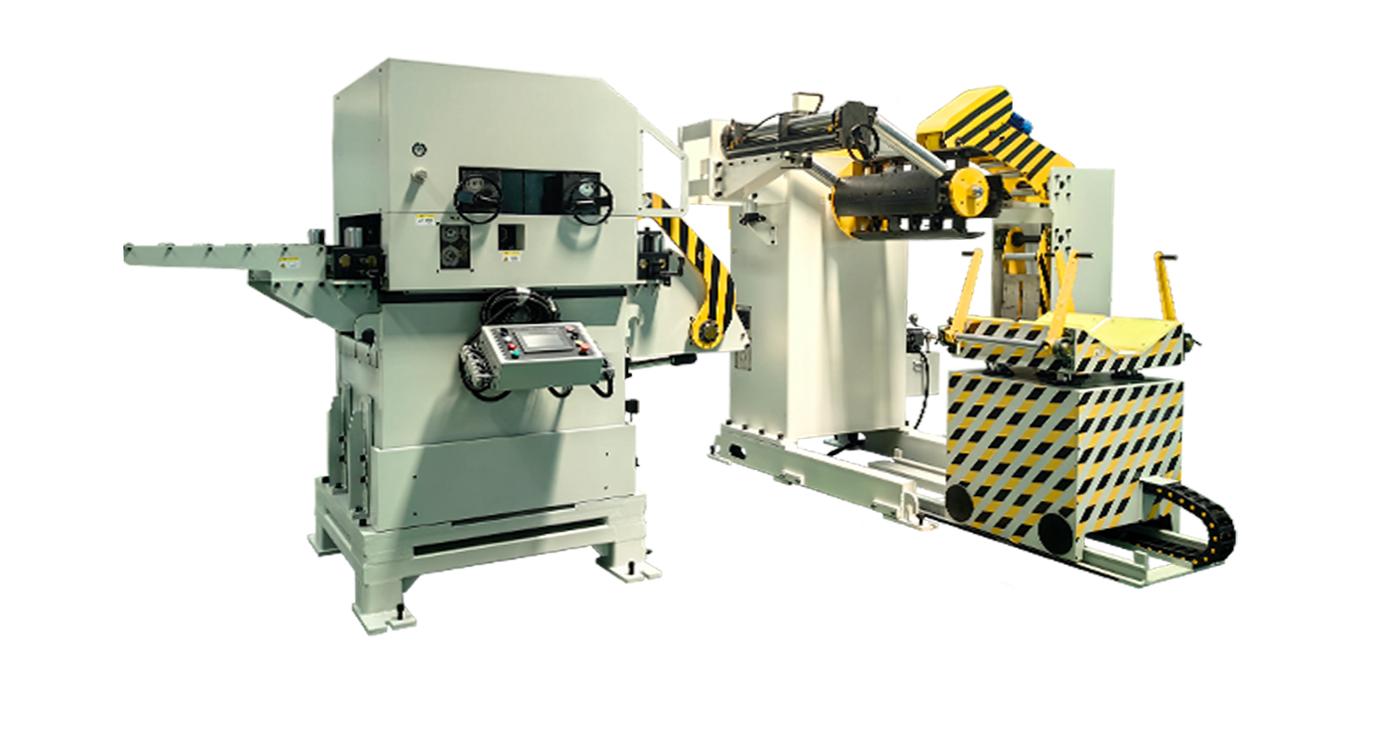

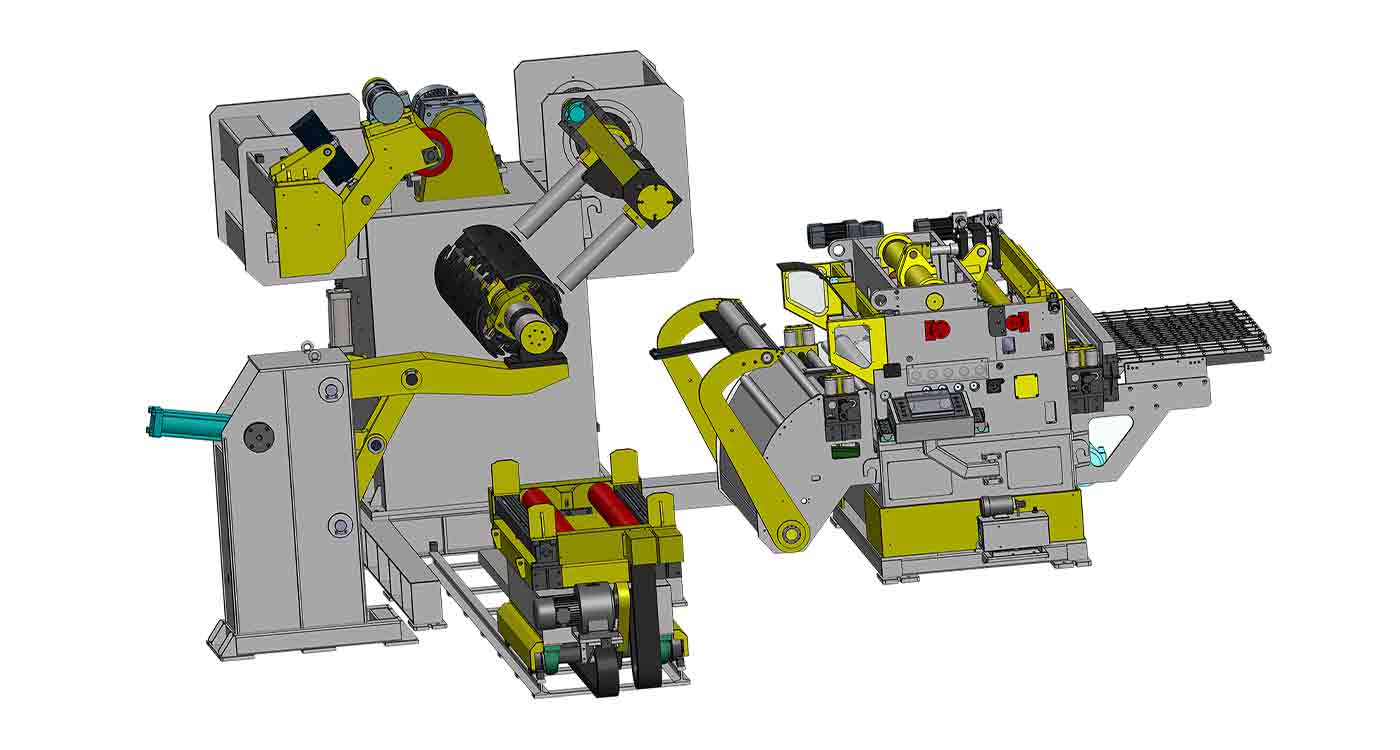

NCDSF3A 3 in 1 Decoiler Straightener Feeder (0.6~6.0)





Advantage:

Special design for high strength steel.
Save space.
High precision servo control system.

Features:

Suitable for stainless steel, high strength steel etc. Thickness range is 0.6~6.0mm.
Compact design, save space.
Electrical thickness adjustment, save straightening adjustment value for one key recall.
Depends on material type, can increase head flip up system as option design.
Siemens, Mitsubishi, Yaskawa servo control system can be selected.

Technical Parameter

Model	NCDSF3-400A	NCDSF3-600A	NCDSF3-800A	NCDSF3-1000A	NCDSF3-1300A	NCDSF3-1600A
Material Width(mm)	70-400	70-600	70-800	70-1000	70-1300	200-1600
Material Thickness(mm)	0.6-6.0	0.6-6.0	0.6-6.0	0.6-6.0	0.6-6.0	0.6-6.0
Coil Weight Max(kg)	3000	5000	7000	7000	12000	15000
Coil O.D.(mm)	φ1500	φ1500	φ1500	φ1500	φ1500	φ1500
Coil I.D.(mm)	φ508/610	φ508/610	φ508/610	φ508/610	φ508/610	φ508/610
Max Feed Length(mm)	0-9999.99	0-9999.99	0-9999.99	0-9999.99	0-9999.99	0-9999.99
Feed Speed(m/min)	16~22	16~22	16~22	16~22	16~22	16~22
Straightening Roller(pcs)	Upper5/Lower4 Upper6/Lower5	Upper5/Lower4 Upper6/Lower5	Upper5/Lower4 Upper6/Lower5	Upper5/Lower4 Upper6/Lower5	Upper5/Lower4 Upper6/Lower5	Upper5/Lower4 Upper6/Lower5
Straightening Diameter(mm)	84	84	84	84	84	84
Feed Roller(pcs)	Upper1/Lower1	Upper1/Lower1	Upper1/Lower1	Upper1/Lower1	Upper1/Lower1	Upper1/Lower1
Main Motor(kw)	AC5.0/AC7.0	AC7.0	AC11.0	AC11.0	AC15.0	AC22.0
Material Expansion	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Decoiler Motor(kw)	2.2	3.75	5.5	5.5	7.5	11
Air Pressure(MPa)	0.5	0.5	0.5	0.5	0.5	0.5
Power Supply	3Phase 380V 50Hz / As customer request
Feeding line height adjust method	Electric Adjustment

Straightener Performance(Yield strength: ≤ 610 MPA）

Model		NCDSF3-400A	NCDSF3-600A	NCDSF3-800A	NCDSF3-1000A	NCDSF3-1300A	NCDSF3-1600A
Material Thickness(mm)	1.0~2.0	400	600	800	1000	1300	1600
	2.3	400	558	558	558	816	816
	2.5	400	472	472	472	691	691
	2.8	376	376	376	376	551	551
	3.2	288	288	288	288	422	422
	4.0	184	184	184	184	270	270
	4.5	146	146	146	146	203	203
	5.0	118	118	118	118	165	165
	6.0	82	82	82	82	114	114

(If the customer has higher strength materials, we can further communicate and modify the plan.)

Due to continuous research and improvement of the company’s products, the above specifications, pictures, parameters are subject to change without prior notice, support customization.
